Wukong board with Lego holder for micro:bit

SKU

Elecfreaks_EF08207

Manufacturer No

EF08207

Elecfreaks

Rating:

80 % of 100

1 Reviews Add Your Review

$26.90

Quantity:

Add to Wish List

Manufacturer ID - EF03405

Small size: 58mm*40mm, similar in size to BBC micro:bit. It does not take up space and is more flexible.

Compatible with base: blocks can be built on it, and children can create interesting cases, which can better improve children's creative ability.

Widely Used Breakout Board: There are 8 servo drivers connection, 2 motor drivers connection, 4 Rainbow LEDs, 8 LEDs, and a buzzer switch on board.

400mAh Li-ion Battery: 20 minutes for completing the charge that can operate for more than 40 minutes a time.

Working Voltage: 3.7v~5v, Most of the IO ports led out in GVS form. Standalone IIC pots are available for OLED and BME280.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

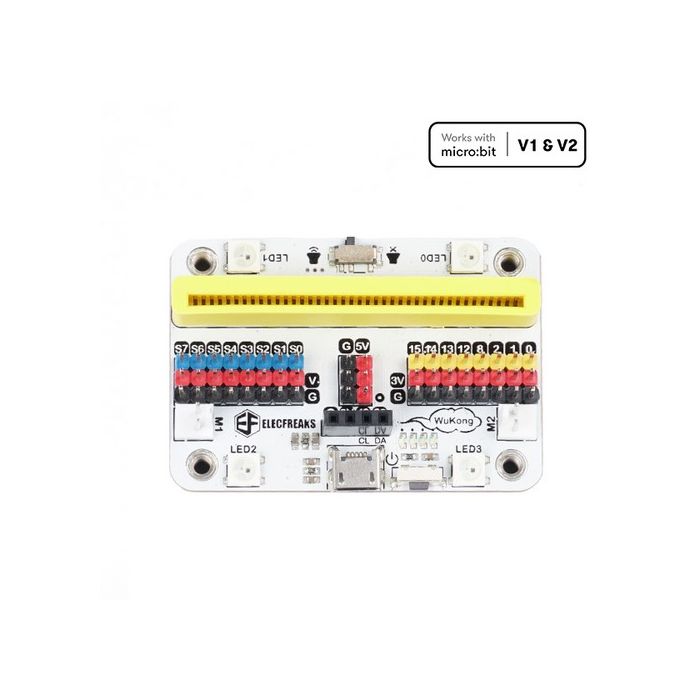

ELECFREAKS micro:bit Wukong Expansion Board Adapter is 58mm*40mm, similar in size to BBC micro:bit. It does not take up space and is more flexible. Blocks can be built on it, and children can create interesting cases, which can better improve children's creative ability.

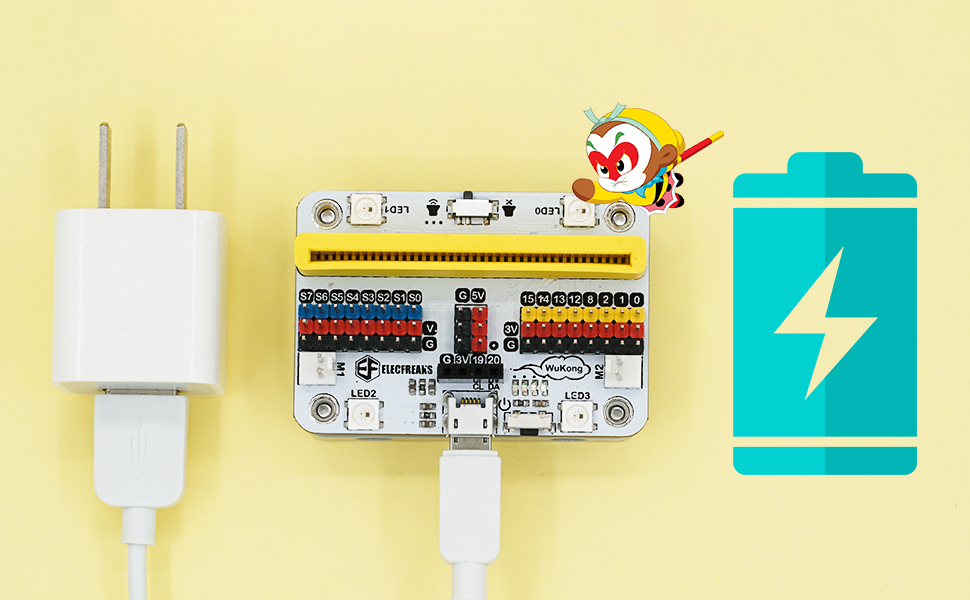

20 MINUTES FOR COMPLETING THE CHARGE

POLYMER LITHIUM BATTERY IS SAFER

The onboard lithium battery is more convenient to use. The 400mah polymer lithium battery has sufficient power, stable discharge, long service life, and is safe and explosion-proof. High-rate battery, strong driving ability, can drive 8 servos and 2 motors at the same time.

It supports a fast charge with only 20 minutes for full filling that can operate for more than 40 minutes at a time.

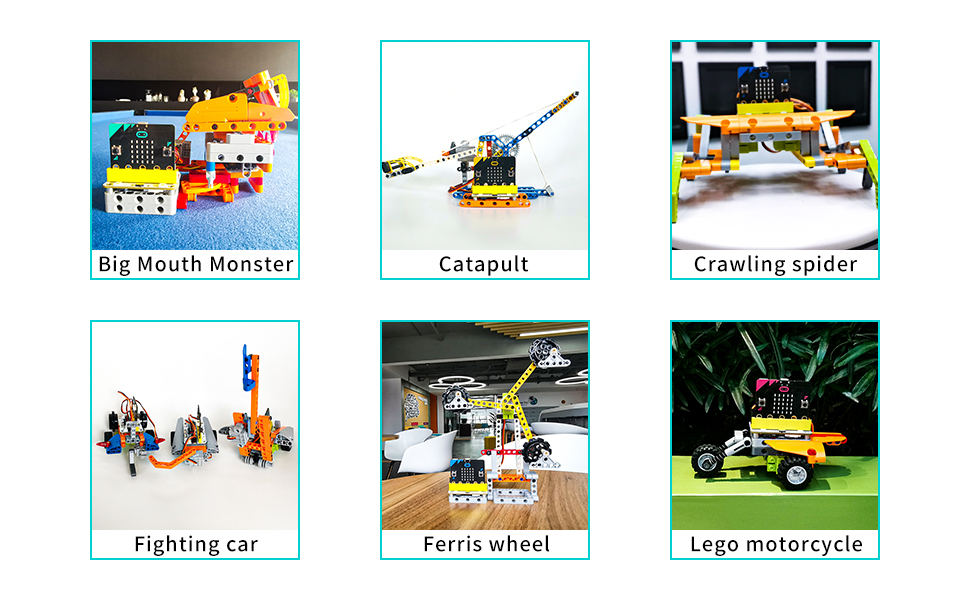

STRONG COMPATIBILITY

Compatible with Standard Building Blocks, you can Build Your Own Creation.

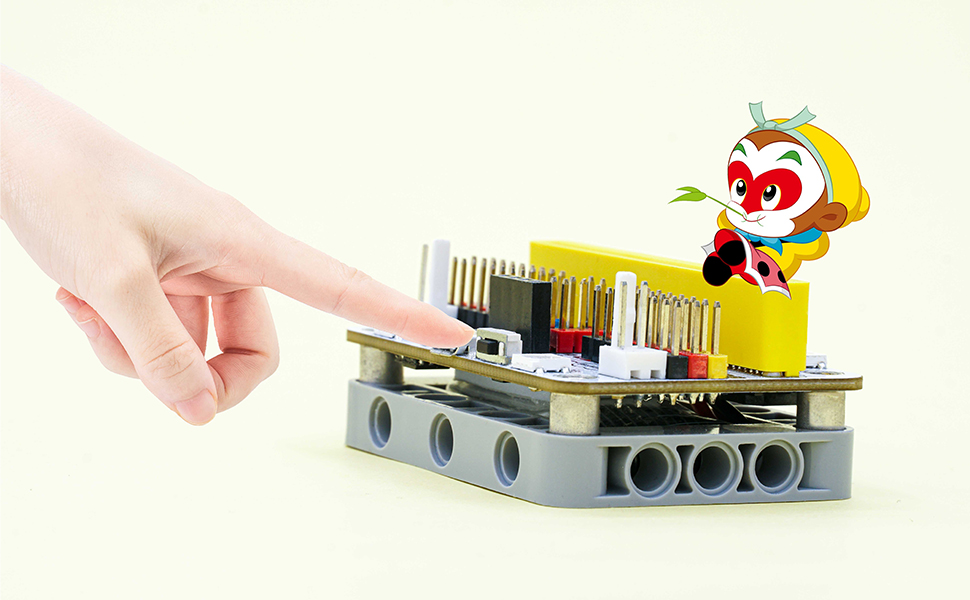

DURABLE POWER ON/OFF STYLE

INNOVATIVE SWITCH MODE

Press once to turn it on, and press twice to turn it off. It is more durable than a toggle switch.

RICH EXPANSION INTERFACE

MULTIPLE FUNCTION

Integrated buzzer, 8 sensor drives, 8 servo drives, 2 motor drives, 4 rainbow LEDs, 8 blue ambient lights

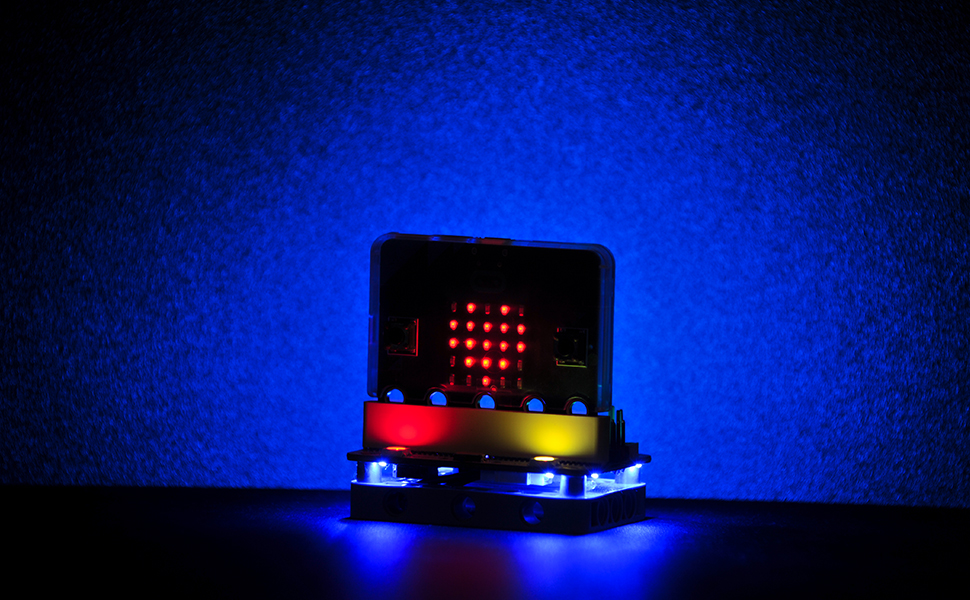

AMBIENT LIGHT

Make the case more cool

Add to Wish List

Specification

Brand	Elecfreaks
Manufacturer ID	EF08207
Power Switch	Cilck to turn on,double to turn off
Battery	400mAh Li-ion Battery pack
Size	40x58mm
Weight	41.6gg
