BBC micro:bit V2.2 GO – Starter Kit

The BBC micro:bit V2.2 is a mini computer that has been designed to make coding fun and easy to learn. The micro:bit Go is a bundle containing all the essentials to get powered up and ready to programme as well as the micro:bit V2.2 board. A perfect choice to get started with the micro:bit.

Details

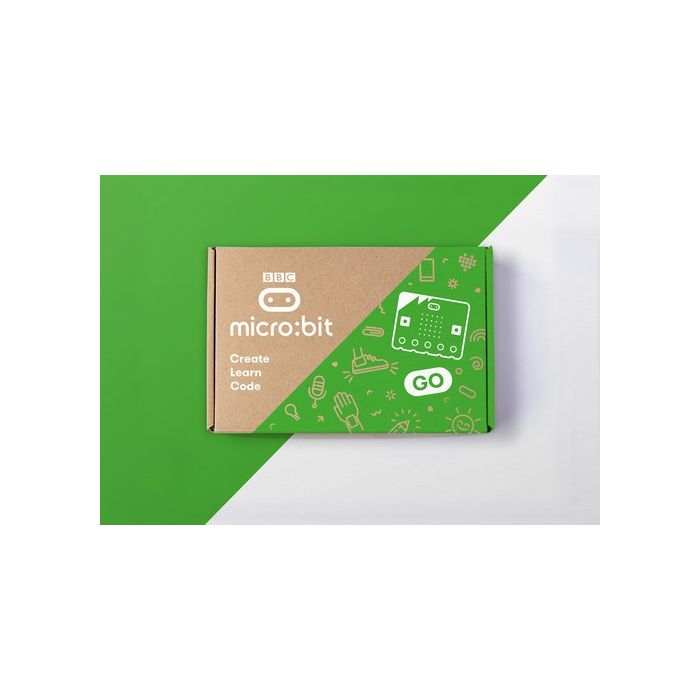

If you are looking to start programming or would like an exciting device to get young people interested in coding – then the BBC micro:bit V2.2 is perfect for you! The micro:bit Go box contains the micro:bit computer as well as a USB cable to connect to a PC and a AAA battery holder with AAA batteries so you can start creating straight away.

Created by the BBC working in partnership with other brands, the micro:bit is a small, programmable computer that has been designed to inspire children and young people to learn about programming and electronics in a practical and fun way.

.

Measuring just 4cm x 5cm, this single board computer has an impressive ARM Cortex m4 processor and 512KB of flash, making it a capable little device. The micro:bit comes in 4 colours and has various individually programmable inputs and outputs including a 5×5 LED matrix display, buttons, speakers and microphone. The micro:bit also features a temperature sensor, accelerometer, touch-sensitive logo, and a built-in sleep/off mode.

It is compatible with lots of free online code editors designed for different knowledge levels across a number of different programming languages so you can find something to suit how you want to learn or teach. There are endless amounts of free projects, lesson plans and activities to try, so there is every reason to start your micro:bit journey today.

Contents:

• 1 x micro:bit V2.2 board – available in 4 colours red, yellow, green & blue (please note we cannot select the colour of the micro:bit you will receive)
• 1 x Quick start guide
• 1x micro USB Cable
• 1x Battery Holder
• 2x AAA Batteries

Key Features of the micro:bit V2.2

• 25 LED matrix on the board where you can scroll messages or display numbers
• Accelerometer to detect movement or tilting
• Compass
• Bluetooth connection to interact with the internet or other devices
• 2 user input buttons
• Micro USB connection to use with PC for programming
• Port for a battery pack
• ARM Cortex-M4 CPU
• Built-in speaker and microphone
• 20 pin edge connector along the bottom of the board

We have highlighted some of the key differences between the board versions below:

• New built in-built speaker & microphone.
• Memory has increased by 700% from 16KB to128KB RAM and 256KB to 512KB flash which gives the device much more capability.
• The CPU has been upgraded from a Cortex m0 at 16MHz to a Cortex m4 with a floating-point at 64MHz.
• The golden edge connectors have small indentations that allow much easier prototyping with crocodile clips that won’t keep falling off.
• The board can now provide 200mA to accessories, up from 90mA in the previous board version.
• Extra input capability is achieved with the touch sensor to accompany the existing two buttons.
• Version 2 now has a power LED and can be switched off instead of having to remove batteries.
• Able to support both AI and machine learning
